#P7423

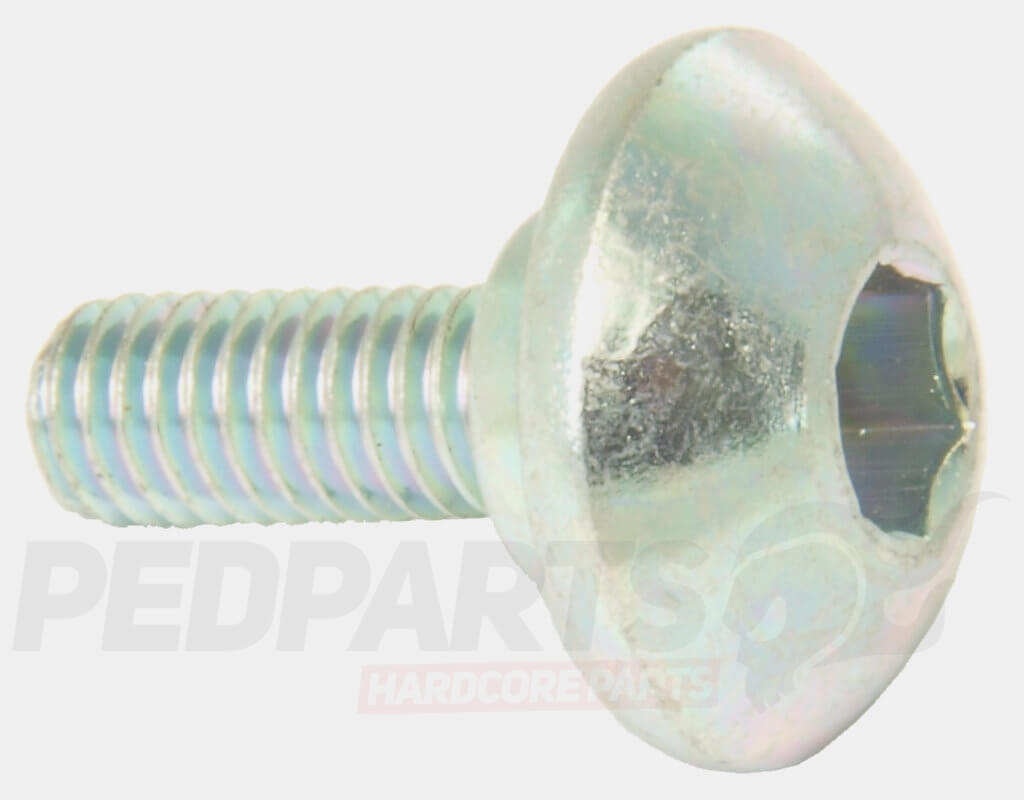

Pillion seat hinge screw with shoulder for Yamaha Aerox 50cc 2013 onward. Also found on X-MAX maxi-scooters and can be used as a universal screw.
Dimensions:
Thread: M6
Thread Length: 14mm
Shoulder length: 3.5mm
Shoulder OD: 9.8mm
Head OD: 18mm
Allen key: 6mm
Yamaha 90109-06X16
