Stage6 MKII multifunctional digital speedometer.

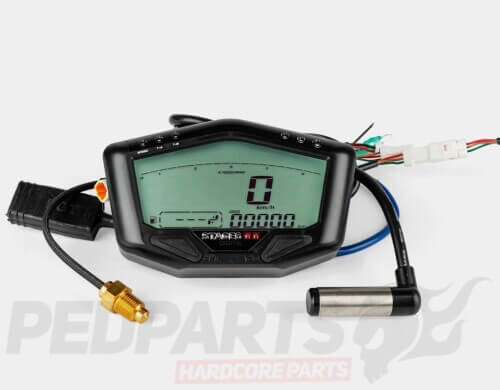

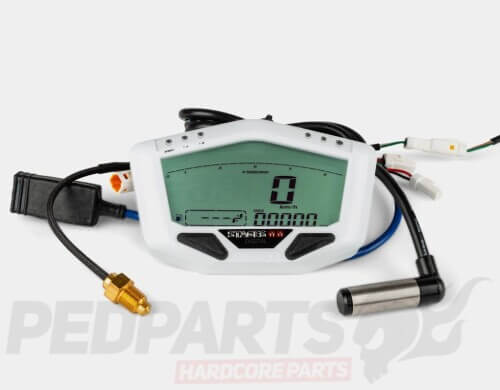

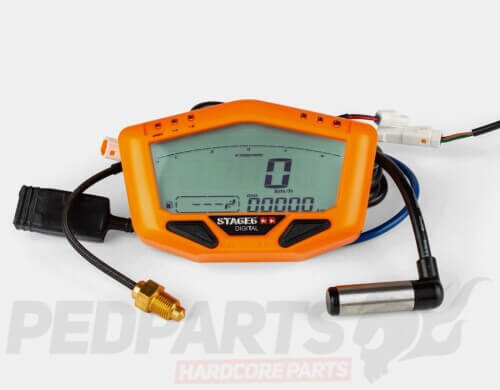

Universal digital Stage6 speedometer with illuminated display, available with white, orange or black casing.

The speedo has a size of 100 x 60 x 20mm. Revs are picked up inductively (wire wrapped around HT lead),

The speedometer has the following features:
. Speedometer 0-360 km/h (or mph)
. Rev counter up to 20,000 rpm
. Scalable rpm curve
. Thermometer 0-250° C (PT-1/8″ sensor)
. Engine hours meter 0-999.9 h
. Fuel guage 0-100%
. Voltmeter 0-18.0 V
. Odometer, shift light, top speed storage, temperature alarm
. EGT (exhaust gas temperature).

There is also a timer that allows for measuring
. the time necessary to reach a certain speed
. the time necessary to cover a certain distance

These Stage6 speedo clocks can be used for two and four-stroke scooters.

Comes with PT1/8″ temperature sensor; for Piaggio and Peugeot, additional temperature sensors with a M10 x 1.0 or M14 x 1.25 pitch are available.

RPM can be set for use with 1,2 and 4 cylinder engines, 2-stroke or 4-stroke.

The MKII version now has connections for an EGT sensor (exhaust gas temperature). Sensor sold separately.

Stage6 S6-4081/OR, S6-4081/WH, S6-4081/BK
